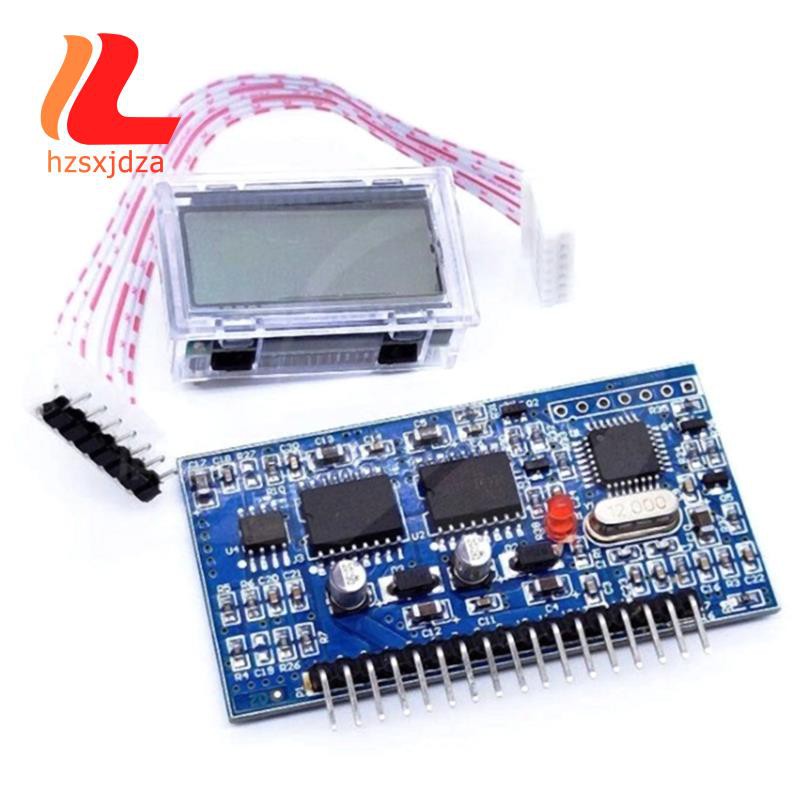

Bảng Mạch Khuếch Đại Sóng Dc-Dc Dc-Ac
0 Đánh Giá
0 Đã Bán
47
197.000 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ sáu 02/07/2021 lúc 11:00 CH
EG8010 is a digital, function very well bring their own dead-time control of pure sine wave inverter generator chip, used in two-stage DC-DC-AC power conversion structure or single-stage DC-AC power frequency transformer Boost architecture, an external 12MHz crystal oscillator, to achieve high precision, and harmonic distortion is very small, 50Hz or 60Hz pure sine wave inverter ASIC.
The chip uses CMOS technology, the internal integration of SPWM sine generator, dead time control circuit, the multiplier factor range, soft start circuit, protection circuit, RS232 serial communication interface and a serial LCD driver ule 1602 functions.
Features: - 5V single power supply - Pin set up four kinds of pure sine wave output frequency: fixed frequency 50 hz pure sine wave; 60 hz fixed frequency pure sine wave; 0-100 hz pure sine wave frequency is adjustable; 0-400 hz pure sine wave frequency is adjustable.
Unipolar and bipolar ulation - Comes with deadband control, pin set up 4 dead time: 300nS dead time; 500nS dead time; 1.0uS dead time; 1.5uS dead time - External 12MHz crystal oscillator - PWM carrier frequency 23.4KHz - Voltage, current, real time temperature feedback
Overvoltage, undervoltage, overcurrent and overheating protection - Soft-start e pin setting the response time of 1S
Serial communication to set the output voltage, frequency and other parameters External
External serial port 128 x 32 LCD ule 1602 display the voltage, frequency, temperature and electric current of the inverter and other information;
Applications: - Single phase pure sine wave inverter - PV Inverter - Wind power inverter - Uninterruptible Power Supply UPS System - Digital generator system - IF power - Single-phase motor speed controller - Single-phase inverter - Sine wave dimmer - Sine wave regulator -
Sine wave generator LCD description: Notice: LCD does not contain cable In the use of the LCD,Connection EGS002 driver board and LCD cable must use shielded cable, otherwise.Inverter, high-voltage high-current environment will seriously interfere with the operation
Type: Voltage Regulator
el Number: EGS002
Application: Computer
Supply Voltage: EG8010
color: blue
material: plastic
Package Contents:
1 * ule
1 * LCD
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
