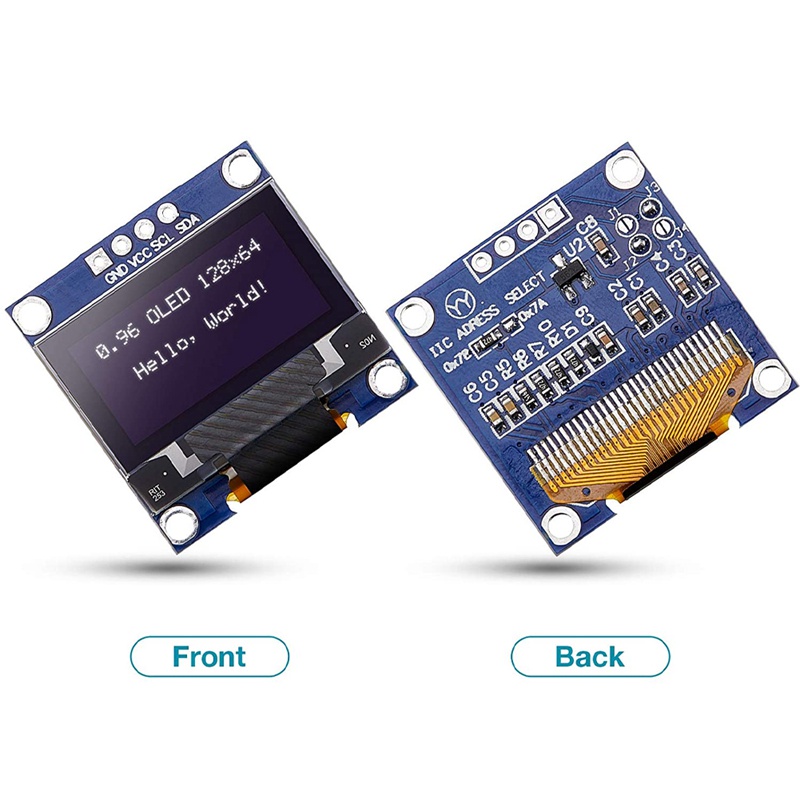

Màn hình LCD hiển thị ánh sáng trắng 0.96 inch 4-Pin I2C IIC 4-Pin 128X64 OLED cho Arduino MSP430 Series
0 Đánh Giá
0 Đã Bán
34
684.000 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ sáu 19/11/2021 lúc 04:29 CH
Compatibility: 0.96 inch OLED ule is designed to display graphic information and text information directly on your microcontroller project; Compatible with for Arduino Mega, Raspberry pi, 51 MCU, STIM 32, etc.
Product information: resolution is 128 x 64; View angle is more than 160 degrees; Supporting voltage is from 3.3V to 5V DC; Power consumption during normal operation is 0.04W, full screen lit is 0.08W
Driver and communication: embedded driver IC is SSD1306; Communication is IIC/ I2C interface, only needs 2 I/O ports; Compatible with MMDVM, Pi-Star, and compatible with for Raspberry pi
Self-luminous design: the OLED display ule is self-luminous, so that no backlight is required; It features high contrast, bright and crisp dots, which is convenient for you to read tiny fonts
Create fonts: there are no fonts embedded in the OLED controller, so users can use the font generation software to create the fonts
Applicable for head-mounted displays, MP3, MP4, watch, meters and other intelligent instruments.
Specifications:
Viewing angle: more than 160 degrees
Working Temperature: - 30 ~ 70 degrees Celsius
Colour:Black+blue
Material:Electronic component
Package Contents:
10 * 0.96 inch white OLED display ulesOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Product information: resolution is 128 x 64; View angle is more than 160 degrees; Supporting voltage is from 3.3V to 5V DC; Power consumption during normal operation is 0.04W, full screen lit is 0.08W
Driver and communication: embedded driver IC is SSD1306; Communication is IIC/ I2C interface, only needs 2 I/O ports; Compatible with MMDVM, Pi-Star, and compatible with for Raspberry pi
Self-luminous design: the OLED display ule is self-luminous, so that no backlight is required; It features high contrast, bright and crisp dots, which is convenient for you to read tiny fonts
Create fonts: there are no fonts embedded in the OLED controller, so users can use the font generation software to create the fonts
Applicable for head-mounted displays, MP3, MP4, watch, meters and other intelligent instruments.
Specifications:
Viewing angle: more than 160 degrees
Working Temperature: - 30 ~ 70 degrees Celsius
Colour:Black+blue
Material:Electronic component
Package Contents:
10 * 0.96 inch white OLED display ulesOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
